Product Number:
BLDM-B02
Product Overview

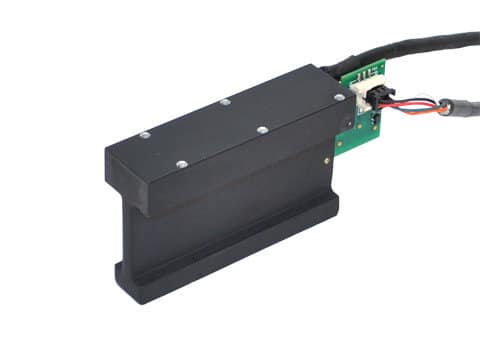

The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF02B NB0223A00.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 3.2 ohms |
| Inductance | 15.9 mH |
| Electrical Time Constant | 1 msec |
| Motor Constant | 0.84 lbs/√watt / 3.7 9.8 N/√watt |
| Force Constant | 1.5 lbs/amp / 6.7 N/amp |
| Back EMF | 0.17 V/ips / 6.7 V/m/sec |
| Continuous Force (100% Duty) | 3.1 lbs / 14 N |
| Continuous Power (100% Duty) | 20 watts |
| Continuous Current (100% Duty) | 2.1 amps |
| Peak Force (10% Duty) | 9.4 lbs / 42 N |
| Peak Power (10% Duty) | 176 watts |
| Peak Current (10% Duty) | 6.3 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 0.3 lbs / 0.1 kg |
| Coil Length | 3.7 in / 93 mm |
