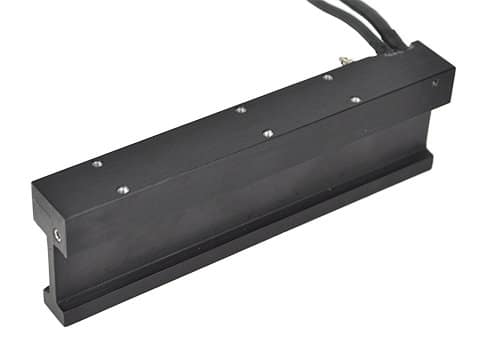

Product Number:
BLDM-B12
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF12B NB0383A04.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 8.4 ohms |
| Motor Constant | 2.2 lbs/√watt / 9.8 9.8 N/√watt |
| Force Constant | 6.4 lbs/amp / 29 N/amp |
| Back EMF | 0.7 V/ips / 29 V/m/sec |
| Continuous Force (100% Duty) | 10 lbs / 46 N |
| Continuous Power (100% Duty) | 21.5 watts |
| Continuous Current (100% Duty) | 1.6 amps |
| Peak Force (10% Duty) | 31 lbs / 137 N |
| Peak Power (10% Duty) | 194 watts |
| Peak Current (10% Duty) | 4.8 amps |
| Electrical Cycle Length | 1.1 in / 28 mm |
| Coil Weight | 0.7 lbs / 0.3 kg |
| Coil Length | 6.7 in / 171 mm |
