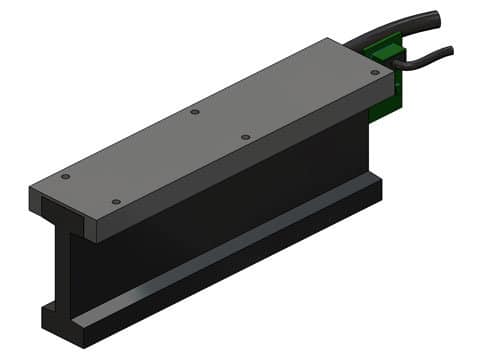

Product Number:
BLDM-C04
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF04C NB0124A01.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 11 ohms |
| Inductance | 11 mH |
| Electrical Time Constant | 1 msec |
| Motor Constant | 2.1 lbs/√watt / 9.4 9.8 N/√watt |
| Force Constant | 6.8 lbs/amp / 30 N/amp |
| Back EMF | 0.8 V/ips / 30 V/m/sec |
| Continuous Force (100% Duty) | 13 lbs / 58 N |
| Continuous Power (100% Duty) | 50 watts |
| Continuous Current (100% Duty) | 1.9 amps |
| Peak Force (10% Duty) | 39 lbs / 173 N |
| Peak Power (10% Duty) | 446 watts |
| Peak Current (10% Duty) | 5.7 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 0.7 lbs / 0.3 kg |
| Coil Length | 6.1 in / 154 mm |
