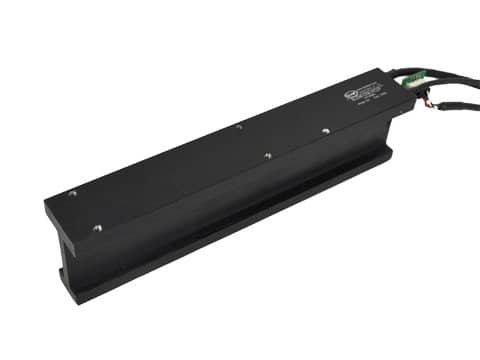

Product Number:
BLDM-C06
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF16F.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 16 ohms |
| Inductance | 16 mH |
| Electrical Time Constant | 1 msec |
| Motor Constant | 2.6 lbs/√watt / 12 9.8 N/√watt |
| Force Constant | 10 lbs/amp / 46 N/amp |
| Back EMF | 1.2 V/ips / 46 V/m/sec |
| Continuous Force (100% Duty) | 20 lbs / 87 N |
| Continuous Power (100% Duty) | 74 watts |
| Continuous Current (100% Duty) | 1.9 amps |
| Peak Force (10% Duty) | 58 lbs / 260 N |
| Peak Power (10% Duty) | 669 watts |
| Peak Current (10% Duty) | 5.7 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 1.3 lbs / 0.6 kg |
| Coil Length | 8.5 in / 216 mm |
