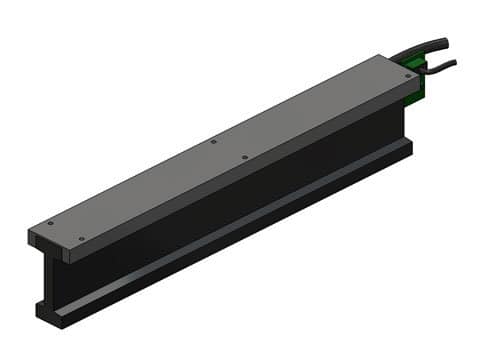

Product Number:
BLDM-C08
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF08C NB0358A00.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 21 ohms |
| Inductance | 21 mH |
| Electrical Time Constant | 1 msec |
| Motor Constant | 2.97 lbs/√watt / 13 9.8 N/√watt |
| Force Constant | 14 lbs/amp / 61 N/amp |
| Back EMF | 1.6 V/ips / 61 V/m/sec |
| Continuous Force (100% Duty) | 26 lbs / 115 N |
| Continuous Power (100% Duty) | 99 watts |
| Continuous Current (100% Duty) | 1.9 amps |
| Peak Force (10% Duty) | 78 lbs / 347 N |
| Peak Power (10% Duty) | 891 watts |
| Peak Current (10% Duty) | 5.7 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 1.6 lbs / 0.8 kg |
| Coil Length | 11 in / 276 mm |
