Product Number:

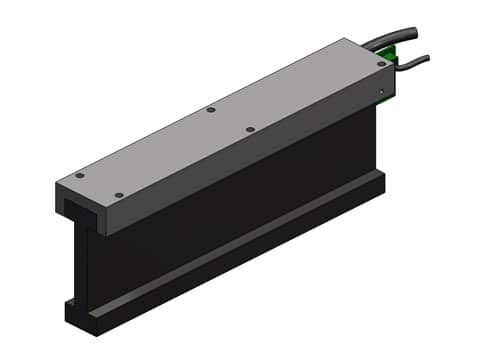

BLDM-D06
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF06D.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 27 ohms |
| Inductance | 36 mH |
| Electrical Time Constant | 1.3 msec |
| Motor Constant | 3.2 lbs/√watt / 14 9.8 N/√watt |
| Force Constant | 17 lbs/amp / 75 N/amp |
| Back EMF | 1.9 V/ips / 75 V/m/sec |
| Continuous Force (100% Duty) | 25 lbs / 110 N |
| Continuous Power (100% Duty) | 78 watts |
| Continuous Current (100% Duty) | 1.5 amps |
| Peak Force (10% Duty) | 75 lbs / 331 N |
| Peak Power (10% Duty) | 698 watts |
| Peak Current (10% Duty) | 4.4 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 2.0 lbs / 0.9 kg |
| Coil Length | 8.5 in / 215 mm |
