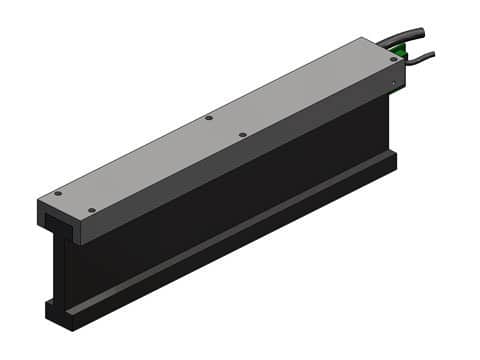

Product Number:
BLDM-D08
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF08D.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 36 ohms |
| Inductance | 48 mH |
| Electrical Time Constant | 1.3 msec |
| Motor Constant | 3.7 lbs/√watt / 16 9.8 N/√watt |
| Force Constant | 22 lbs/amp / 99 N/amp |
| Back EMF | 2.5 V/ips / 99 V/m/sec |
| Continuous Force (100% Duty) | 33 lbs / 147 N |
| Continuous Power (100% Duty) | 104 watts |
| Continuous Current (100% Duty) | 1.5 amps |
| Peak Force (10% Duty) | 99 lbs / 441 N |
| Peak Power (10% Duty) | 932 watts |
| Peak Current (10% Duty) | 4.4 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 2.6 lbs / 1.2 kg |
| Coil Length | 11 in / 276 mm |
