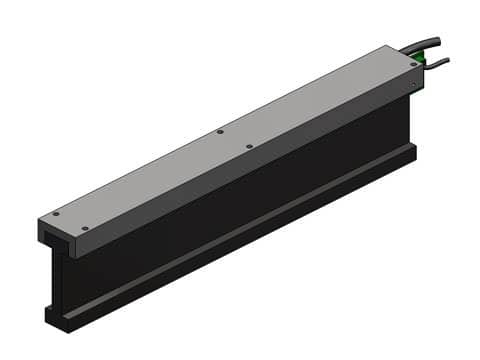

Product Number:
BLDM-D10
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF10D NB0131A08.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 11 ohms |
| Inductance | 15 mH |
| Electrical Time Constant | 1.3 msec |
| Motor Constant | 4.1 lbs/√watt / 18 9.8 N/√watt |
| Force Constant | 14 lbs/amp / 62 N/amp |
| Back EMF | 1.6 V/ips / 62 V/m/sec |
| Continuous Force (100% Duty) | 41 lbs / 184 N |
| Continuous Power (100% Duty) | 129 watts |
| Continuous Current (100% Duty) | 3 amps |
| Peak Force (10% Duty) | 123 lbs / 550 N |
| Peak Power (10% Duty) | 1165 watts |
| Peak Current (10% Duty) | 8.9 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 3.2 lbs / 1.5 kg |
| Coil Length | 13.3 in / 337 mm |
