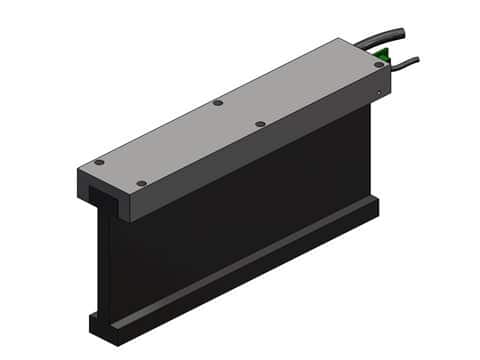

Product Number:
BLDM-E06
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF06E.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 8.6 ohms |
| Inductance | 13 mH |
| Electrical Time Constant | 1.5 msec |
| Motor Constant | 4.6 lbs/√watt / 20 9.8 N/√watt |
| Force Constant | 13.4 lbs/amp / 60 N/amp |
| Back EMF | 1.5 V/ips / 60 V/m/sec |
| Continuous Force (100% Duty) | 42 lbs / 185 N |
| Continuous Power (100% Duty) | 107 watts |
| Continuous Current (100% Duty) | 3.1 amps |
| Peak Force (10% Duty) | 125 lbs / 556 N |
| Peak Power (10% Duty) | 962 watts |
| Peak Current (10% Duty) | 9.3 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 2.5 lbs / 1.1 kg |
| Coil Length | 8.45 in / 215 mm |
