Product Number:

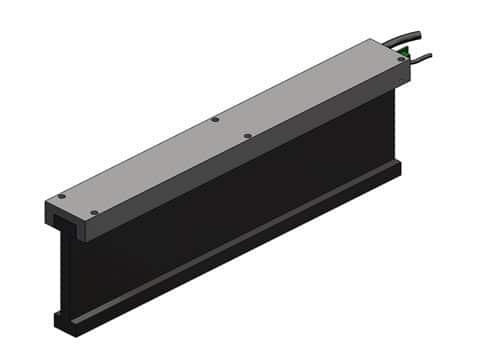

BLDM-E10
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF10E.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 15 ohms |
| Inductance | 23 mH |
| Electrical Time Constant | 1.6 msec |
| Motor Constant | 6 lbs/√watt / 27 9.8 N/√watt |
| Force Constant | 23 lbs/amp / 103 N/amp |
| Back EMF | 2.6 V/ips / 103 V/m/sec |
| Continuous Force (100% Duty) | 70 lbs / 314 N |
| Continuous Power (100% Duty) | 178 watts |
| Continuous Current (100% Duty) | 3.1 amps |
| Peak Force (10% Duty) | 212 lbs / 942 N |
| Peak Power (10% Duty) | 1603 watts |
| Peak Current (10% Duty) | 9.2 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 4.0 lbs / 1.8 kg |
| Coil Length | 13.3 in / 337 mm |
