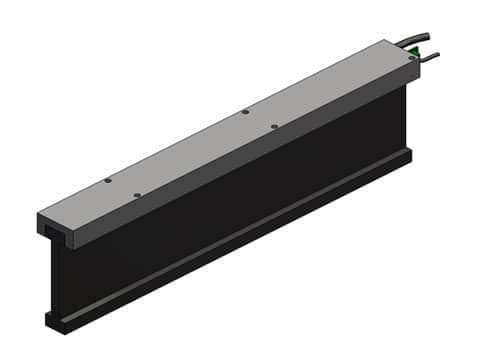

Product Number:
BLDM-E12
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF12E NB0411A01.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 18 ohms |
| Inductance | 28 mH |
| Electrical Time Constant | 1.6 msec |
| Motor Constant | 6.6 lbs/√watt / 29 N/√watt |
| Force Constant | 28 lbs/amp / 123 N/amp |
| Back EMF | 3.1 V/ips / 123 V/m/sec |
| Continuous Force (100% Duty) | 85 lbs / 377 N |
| Continuous Power (100% Duty) | 214 watts |
| Continuous Current (100% Duty) | 3.1 amps |
| Peak Force (10% Duty) | 254 lbs / 1132 N |
| Peak Power (10% Duty) | 9.2 watts |
| Peak Current (10% Duty) | 1927 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 4.8 lbs / 2.2 kg |
| Coil Length | 16.7 in / 398 mm |
