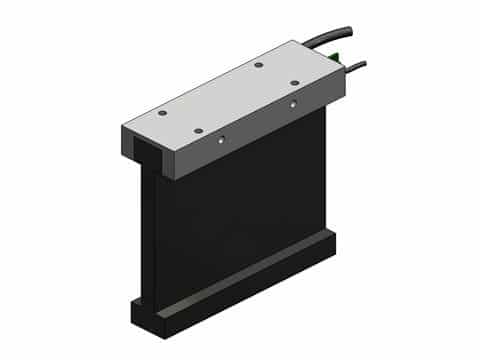

Product Number:
BLDM-F04
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF04F.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 11 ohms |
| Inductance | 14 mH |
| Electrical Time Constant | 1.3 msec |
| Motor Constant | 5.2 lbs/√watt / 23 N/√watt |
| Force Constant | 16.7 lbs/amp / 74 N/amp |
| Back EMF | 1.9 V/ips / 74 V/m/sec |
| Continuous Force (100% Duty) | 43 lbs / 191 N |
| Continuous Power (100% Duty) | 91 watts |
| Continuous Current (100% Duty) | 2.6 amps |
| Peak Force (10% Duty) | 130 lbs / 578 N |
| Peak Power (10% Duty) | 819 watts |
| Peak Current (10% Duty) | 7.8 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 3.6 lbs / 1.7 kg |
| Coil Length | 6.2 in / 156 mm |
