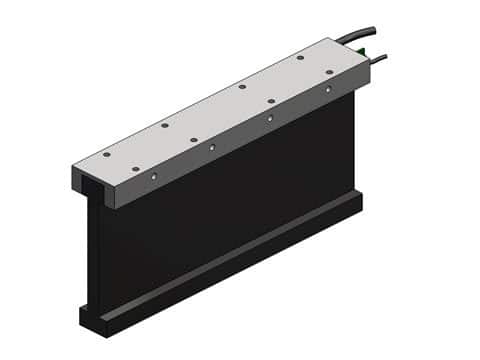

Product Number:
BLDM-F08
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF08F.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 21 ohms |
| Inductance | 27 mH |
| Electrical Time Constant | 1.3 msec |
| Motor Constant | 7.3 lbs/√watt / 33 N/√watt |
| Force Constant | 33.4 lbs/amp / 149 N/amp |
| Back EMF | 3.8 V/ips / 149 V/m/sec |
| Continuous Force (100% Duty) | 87 lbs / 387 N |
| Continuous Power (100% Duty) | 182 watts |
| Continuous Current (100% Duty) | 2.6 amps |
| Peak Force (10% Duty) | 256 lbs / 1152 N |
| Peak Power (10% Duty) | 1638 watts |
| Peak Current (10% Duty) | 7.8 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 6.8 lbs / 3.1 kg |
| Coil Length | 11.0 in / 278 mm |
