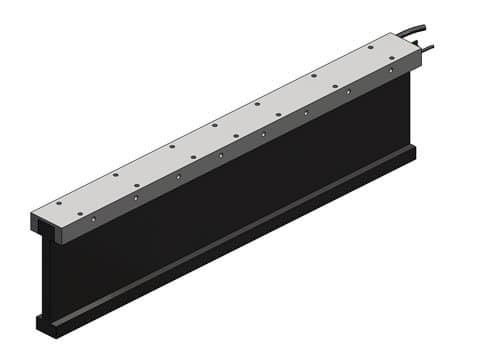

Product Number:
BLDM-F16
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMCF16F.
Specifications
| Motor Type | Ironless (Cog-Free) |
|---|---|
| Resistance | 10 ohms |
| Inductance | 13 mH |
| Electrical Time Constant | 1.3 msec |
| Motor Constant | 10.3 lbs/√watt / 46 N/√watt |
| Force Constant | 33.2 lbs/amp / 148 N/amp |
| Back EMF | 3.8 V/ips / 148 V/m/sec |
| Continuous Force (100% Duty) | 173 lbs / 771 N |
| Continuous Power (100% Duty) | 364 watts |
| Continuous Current (100% Duty) | 5.2 amps |
| Peak Force (10% Duty) | 517 lbs / 2300 N |
| Peak Power (10% Duty) | 3276 watts |
| Peak Current (10% Duty) | 16 amps |
| Electrical Cycle Length | 2.4 in / 61 mm |
| Coil Weight | 13 lbs / 5.9 kg |
| Coil Length | 20.6 in / 522 mm |
