Product Number:

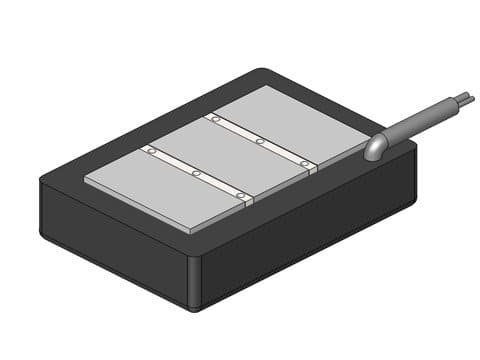

BLSM-1C
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMIC1C.
Specifications
| Motor Type | Ironcore (High Force) |
|---|---|
| Force Constant | 14 lbs/amp / 61 N/amp |
| Back EMF | 1.6 V/ips / 61 V/m/sec |
| Continuous Force (100% Duty) | 55 lbs / 244 N |
| Continuous Current (100% Duty) | 4.0 amps |
| Peak Force (10% Duty) | 147 lbs / 654 N |
| Peak Current (10% Duty) | 12 amps |
| Electrical Cycle Length | 1.4 in / 34 mm |
| Coil Weight | 7.4 lbs / 3.4 kg |
| Coil Length | 6.4 in / 162 mm |
