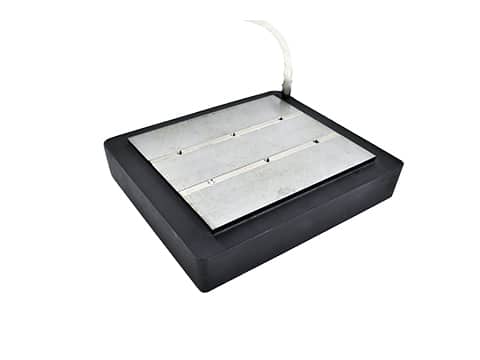

Product Number:
BLSM-1F
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Specifications
| Motor Type | Ironcore (High Force) |
|---|---|
| Resistance | 14 ohms |
| Inductance | 11 mH |
| Electrical Time Constant | 8 msec |
| Motor Constant | 9.3 lbs/√watt / 41 N/√watt |
| Force Constant | 12 lbs/amp / 53 N/amp |
| Back EMF | 1.3 V/ips / 53 V/m/sec |
| Continuous Force (100% Duty) | 100 lbs / 444 N |
| Continuous Power (100% Duty) | 80 watts |
| Continuous Current (100% Duty) | 8 amps |
| Peak Force (10% Duty) | 300 lbs / 1332 N |
| Peak Power (10% Duty) | 700 watts |
| Peak Current (10% Duty) | 24 amps |
| Electrical Cycle Length | 1.4 in / 34 mm |
| Coil Weight | 19 lbs / 9 kg |
| Coil Length | 6.5 in / 166 mm |
