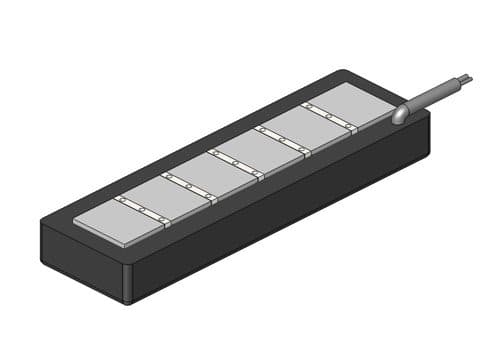

Product Number:
BLSM-2B
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMIC2B.
Specifications
| Motor Type | Ironcore (High Force) |
|---|---|
| Force Constant | 19 lbs/amp / 82 N/amp |
| Back EMF | 2.1 V/ips / 82 V/m/sec |
| Continuous Force (100% Duty) | 74 lbs / 329 N |
| Continuous Current (100% Duty) | 4.0 amps |
| Peak Force (10% Duty) | 194 lbs / 877 N |
| Peak Current (10% Duty) | 12 amps |
| Electrical Cycle Length | 1.4 in / 34 mm |
| Coil Weight | 10 lbs / 4.5 kg |
| Coil Length | 11.8 in / 299 mm |
