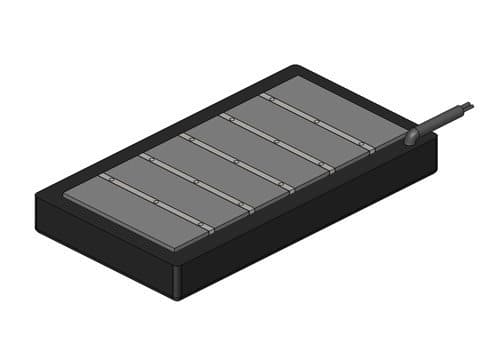

Product Number:
BLSM-2E
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMIC2E.
Specifications
| Motor Type | Ironcore (High Force) |
|---|---|
| Resistance | 2.7 ohms |
| Inductance | 18 mH |
| Electrical Time Constant | 6.8 msec |
| Motor Constant | 14 lbs/√watt / 60 N/√watt |
| Force Constant | 22 lbs/amp / 98 N/amp |
| Back EMF | 2.5 V/ips / 97 V/m/sec |
| Continuous Force (100% Duty) | 170 lbs / 755 N |
| Continuous Power (100% Duty) | 157 watts |
| Continuous Current (100% Duty) | 7.7 amps |
| Peak Force (10% Duty) | 506 lbs / 2246 N |
| Peak Power (10% Duty) | 1400 watts |
| Peak Current (10% Duty) | 23 amps |
| Electrical Cycle Length | 1.4 in / 34 mm |
| Coil Weight | 35 lbs / 16 kg |
| Coil Length | 11.8 in / 299 mm |
