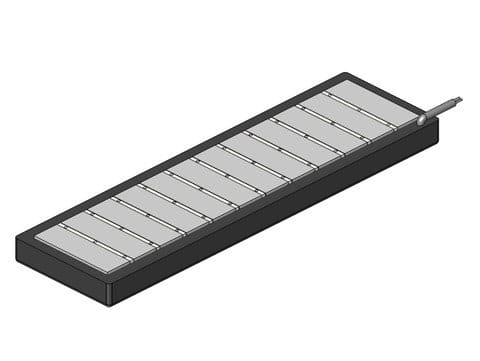

Product Number:
BLSM-4E
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMIC4E.
Specifications
| Motor Type | Ironcore (High Force) |
|---|---|
| Force Constant | 92 lbs/amp / 410 N/amp |
| Back EMF | 10 V/ips / 410 V/m/sec |
| Continuous Force (100% Duty) | 369 lbs / 1641 N |
| Continuous Current (100% Duty) | 4.0 amps |
| Peak Force (10% Duty) | 984 lbs / 4377 N |
| Peak Current (10% Duty) | 12 amps |
| Electrical Cycle Length | 1.4 in / 34 mm |
| Coil Weight | 49 lbs / 22 kg |
| Coil Length | 23 in / 574 mm |
