Product Number:

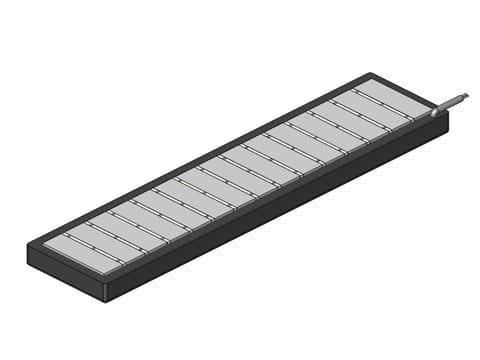

BLSM-5E
Product Overview
The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.
Equivalent to Baldor motor LMIC5E.
Specifications
| Motor Type | Ironcore (High Force) |
|---|---|
| Resistance | 2.7 ohms |
| Electrical Time Constant | 0.2 msec |
| Motor Constant | 0.4 lbs/√watt / 1.9 N/√watt |
| Force Constant | 0.7 lbs/amp / 3.1 N/amp |
| Back EMF | 0.08 V/ips / 3.1 V/m/sec |
| Peak Force (10% Duty) | 3.6 lbs / 16 N |
| Peak Power (10% Duty) | 99 watts |
| Peak Current (10% Duty) | 5.1 amps |
| Electrical Cycle Length | 1.4 in / 34 mm |
| Coil Weight | 0.2 lbs / 0.1 kg |
| Coil Length | 2.9 in / 74 mm |
