Product Number:
NCC01-04-001-1X
Product Overview

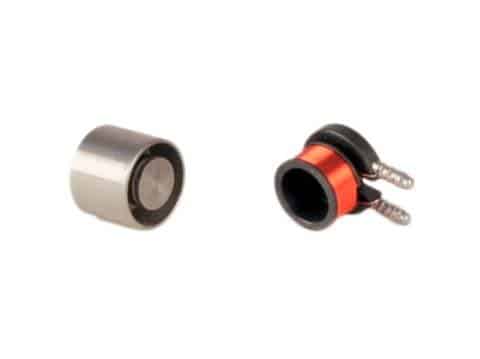

This moving coil actuator (NCC01-04-001-1X) comes supplied with a plastic bobbin in order to prevent eddy currents from being generated in the bobbin, and allow for a minimal resistance to the desired motion.
Moving coil actuators do not come with a bearing system, if you would like to see actuators with a built-in bearing system please look at our moving magnet models. Or if you would like to see how we have integrated our voice coils into linear motion stages.
To determine your motion profile needs, use our linear motion calculator.
This motor has been integrated into the following positioning stages:
VCS01-001-CR-001-F
Specifications
| Device Type | Moving Coil mm |
|---|---|
| Stroke Length | 0.13 in / 3.2 mm |
| Radial Clearance | 0.01 in / 0.25 mm |
| Bearing Type | None Provided |
| Moving Mass | 0.04 oz / 1.2 g |
| Total Mass | 0.20 oz / 5.7 g |
| Resistance @ 20C | 1.5 ohms |
| Inductance @ 20C | 0.063 mH |
| Electrical Time Constant | 0.042 msec |
| Motor Constant | 0.08 lbs/√watt / 0.36 N/√watt |
| Force Constant | 0.10 lbs/amp / 0.45 N/amp |
| Back EMF | 0.01 V/ips / 0.45 V/m/sec |
| Continuous Force (100% Duty) | 0.06 lbs / 0.27 N |
| Continuous Power (100% Duty) | 0.6 watts |
| Continuous Current (100% Duty) | 0.6 amps |
| Peak Force (10% Duty) | 0.18 lbs / 0.80 N |
| Peak Power (10% Duty) | 5.1 watts |
| Peak Current (10% Duty) | 1.8 amps |
| Outside Diameter | 0.44 in / 11.1 mm |
| Housing Length | 0.36 in / 9.0 mm |
