Product Number:

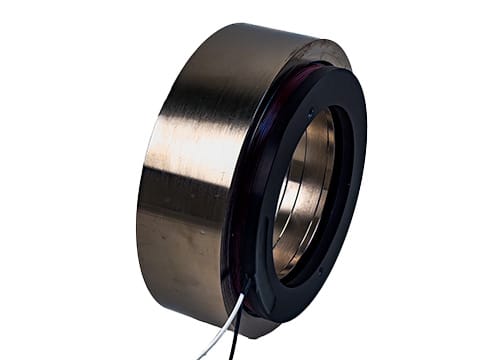

NCC01-58-300-2H
Product Overview
Moving coil actuators do not come with a bearing system, if you would like to see actuators with a built-in bearing system please look at our moving magnet models. Or if you would like to see how we have integrated our voice coils into linear motion stages.
Specifications
| Device Type | Moving Coil |
|---|---|
| Stroke Length | 0.13 in / 3.2 mm |
| Radial Clearance | 0.03 in / 0.8 mm |
| Bearing Type | None Provided |
| Moving Mass | 9.6 oz / 275 g |
| Total Mass | 30 oz / 860 g |
| Resistance @ 20C | 3.3 ohms |
| Inductance @ 20C | 6.0 mH |
| Electrical Time Constant | 1.5 msec |
| Motor Constant | 2.9 lbs/√watt / 13 N/√watt |
| Force Constant | 5.3 lbs/amp / 24 N/amp |
| Back EMF | 0.6 V/ips / 24 V/m/sec |
| Continuous Force (100% Duty) | 26 lbs / 116 N |
| Continuous Power (100% Duty) | 80 watts |
| Continuous Current (100% Duty) | 4.9 amps |
| Peak Force (10% Duty) | 78 lbs / 348 N |
| Peak Power (10% Duty) | 700 watts |
| Peak Current (10% Duty) | 15 amps |
| Outside Diameter | 5.61 in / 150 mm |
| Housing Length | 1.75 in / 45 mm |
