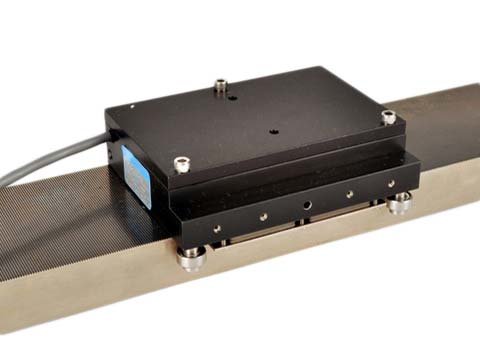

The STS-2030-A is a 2-phase single axis linear stepper motor that generates a continuous force of 20.0 lbs [89.0 N]. It is guided by precision roller bearings along the platen. Integral air bearings are used to maintain the required motor air gap. 60 PSI of filtered compressed air should be supplied by the customer. There are mounting holes on the top of forcer to allow for payload mounting.

This forcer is designed to operate on a 2.95″ [74.9 mm] wide, 0.96″ [24.3 mm] thick bar platen. Platen Model #: STP-30-XXX-A.
