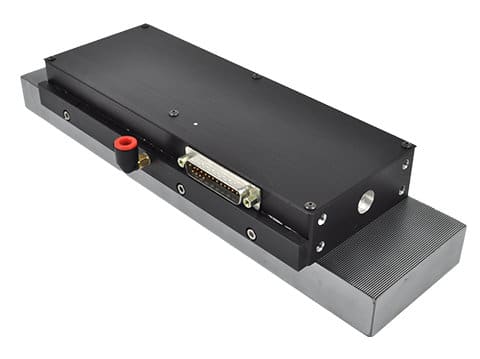

The STS-5030-A4 is a 4-phase single axis linear stepper motor that generates a continuous force of 50.0 lbs [222 N]. Integral air bearings are used to maintain the required motor air gap. 60 PSI of filtered compressed air should be supplied by the customer. It does not come supplied with precision roller bearings to guide it along the platen. These can be added as a custom option. The customer may also supply their own bearing guidance system. Power is supplied to the motor via a 25-pin D-Sub Male connector. There are mounting holes on top of the forcer to allow for payload mounting.

Baldor Motors P/N LMSS2508-2WW0 or LMSS2508-4AA1. Spec #: SQ0057A00.

This forcer is designed to operate on a 2.95″ [74.9 mm] wide, 0.96″ [24.3 mm] thick bar platen. Platen Model #: STP-30-XXX-A.
