Product Number:

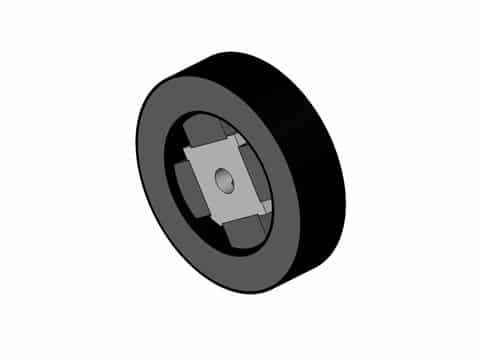

TMR-020-22-010-4X
Product Overview
Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.
To determine your motion profile needs, use our rotary motion calculator.
Specifications
| Continuous Torque Range | 20 degrees / 0.35 rad |
|---|---|
| Radial Clearance | 0.02 in / 0.5 mm |
| Housed with Bearings | No |
| Rotor Inertia | 0.43 oz-in² / 0.0000079 kg-m² |
| Total Mass | 0.30 oz / 135 g |
| Resistance @ 20°C | 4.5 ohms |
| Inductance @ 20°C | 1.3 mH |
| Electrical Time Constant | 0.29 msec |
| Motor Constant | 3.7 in-oz/√watt / 2.6 N-cm/√watt |
| Torque Constant | 8.0 in-oz/amp / 5.6 N-cm/amp |
| Back EMF | 0.0059 V/rpm / 0.056 V/rad/sec |
| Continuous Torque (100% Duty) | 10 in-oz / 7.1 N-cm |
| Continuous Power (100% Duty) | 7 watts |
| Continuous Current (100% Duty) | 1.3 amps |
| Peak Torque (10% Duty) | 30 in-oz / 21 N-cm |
| Peak Power (10% Duty) | 66 watts |
| Peak Current (10% Duty) | 3.8 amps |
| # of Poles | 4 |
