Product Number:

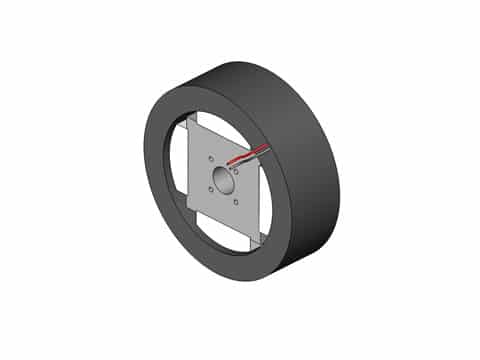

TMR-020-270-4V
Product Overview
Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.
To determine your motion profile needs, use our rotary motion calculator.
Specifications
| Continuous Torque Range | 20 degrees / 0.35 rad |
|---|---|
| Radial Clearance | 0.025 in / 0.635 mm |
| Housed with Bearings | No |
| Rotor Inertia | 1.0 oz-in² / 2.0 kg-m² |
| Total Mass | 106 oz / 3000 g |
| Resistance @ 20°C | 9.7 ohms |
| Motor Constant | 94.0 in-oz/√watt / 65.7 N-cm/√watt |
| Torque Constant | 293 in-oz/amp / 205 N-cm/amp |
| Continuous Torque (100% Duty) | 265 in-oz / 187 N-cm |
| Continuous Power (100% Duty) | 7.9 watts |
| Continuous Current (100% Duty) | 0.9 amps |
| Peak Torque (10% Duty) | 795 in-oz / 560 N-cm |
| Peak Power (10% Duty) | 71.6 watts |
| Peak Current (10% Duty) | 2.7 amps |
| # of Poles | 4 |
