Product Number:

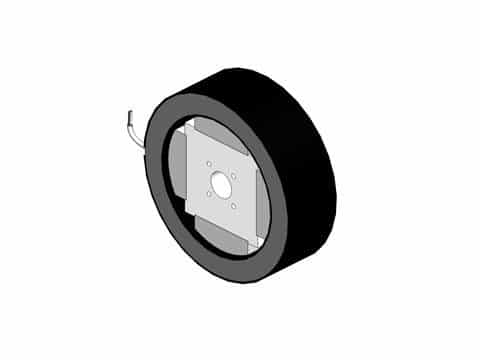

TMR-020-53-270-4-48V
Product Overview
Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.
To determine your motion profile needs, use our rotary motion calculator.
Specifications
| Continuous Torque Range | 20 degrees / 0.35 rad |
|---|---|
| Radial Clearance | 0.025 in / 0.64 mm |
| Housed with Bearings | No |
| Rotor Inertia | 110.4 oz-in² / 0.00202 kg-m² |
| Total Mass | 105.8 oz / 3000 g |
| Resistance @ 20°C | 9.0 ohms |
| Inductance @ 20°C | 5.5 mH |
| Electrical Time Constant | 0.61 msec |
| Motor Constant | 60 in-oz/√watt / 42 N-cm/√watt |
| Torque Constant | 180 in-oz/amp / 126 N-cm/amp |
| Back EMF | 0.13 V/rad/sec |
| Continuous Torque (100% Duty) | 380 in-oz / 265 N-cm |
| Continuous Power (100% Duty) | 40 watts |
| Continuous Current (100% Duty) | 2.1 amps |
| Peak Torque (10% Duty) | 960 in-oz / 795 N-cm |
| Peak Power (10% Duty) | 360 watts |
| Peak Current (10% Duty) | 6.3 amps |
