Product Number:

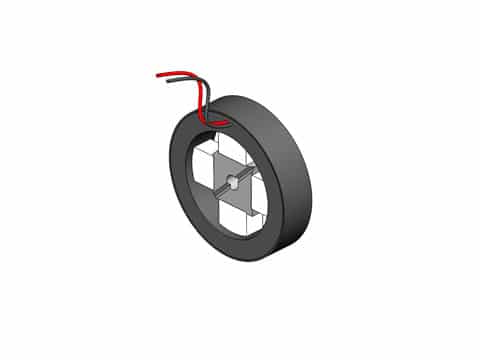

TMR-040-25-010-4
Product Overview
Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.
To determine your motion profile needs, use our rotary motion calculator.
Specifications
| Continuous Torque Range | 40 degrees / 0.70 rad |
|---|---|
| Radial Clearance | 0.04 in / 1.01 mm |
| Housed with Bearings | No |
| Rotor Inertia | 0.90 oz-in² / 0.000016 kg-m² |
| Total Mass | 6.0 oz / 170 g |
| Resistance @ 20°C | 4.1 ohms |
| Inductance @ 20°C | 1.4 mH |
| Electrical Time Constant | 0.34 msec |
| Motor Constant | 4.9 in-oz/√watt / 3.4 N-cm/√watt |
| Torque Constant | 10 in-oz/amp / 6.9 N-cm/amp |
| Back EMF | 0.15 V/rad/sec |
| Continuous Torque (100% Duty) | 10 in-oz / 7.0 N-cm |
| Continuous Power (100% Duty) | 4.2 watts |
| Continuous Current (100% Duty) | 1.0 amps |
| Peak Torque (10% Duty) | 30 in-oz / 21 N-cm |
| Peak Power (10% Duty) | 38 watts |
| Peak Current (10% Duty) | 3.0 amps |
| # of Poles | 4 |
