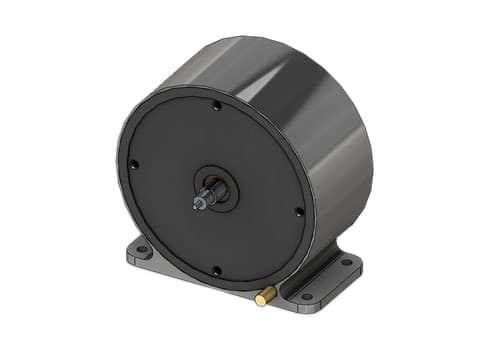

Product Number:
TMR-040-875-4H
Product Overview
Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.
To determine your motion profile needs, use our rotary motion calculator.
Specifications
| Continuous Torque Range | 40 degrees / 0.70 rad |
|---|---|
| Radial Clearance | 0.025 in / 0.64 mm |
| Housed with Bearings | Yes |
| Rotor Inertia | 267 oz-in² / 4.9 kg-m² |
| Total Mass | 183 oz / 5200 g |
| Resistance @ 20°C | 3.0 ohms |
| Inductance @ 20°C | 3.7 mH |
| Electrical Time Constant | 1.2 msec |
| Motor Constant | 95 in-oz/√watt / 66 N-cm/√watt |
| Torque Constant | 165 in-oz/amp / 115 N-cm/amp |
| Back EMF | 0.12 V/rad/sec |
| Continuous Torque (100% Duty) | 875 in-oz / 611 N-cm |
| Continuous Power (100% Duty) | 85 watts |
| Continuous Current (100% Duty) | 5.3 amps |
| Peak Torque (10% Duty) | 2625 in-oz / 1834 N-cm |
| Peak Power (10% Duty) | 765 watts |
| Peak Current (10% Duty) | 16 amps |
| # of Poles | 4 |
