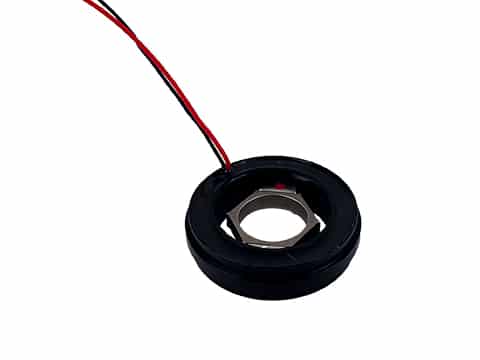

Product Number:
TMR-075-16-001-2
Product Overview
Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.
To determine your motion profile needs, use our rotary motion calculator.
Specifications
| Continuous Torque Range | 75 degrees / 1.31 rad |
|---|---|
| Radial Clearance | 0.015 in / 0.64 mm |
| Housed with Bearings | No |
| Rotor Inertia | 0.59 oz-in² / 1.07 kg-m² |
| Total Mass | 0.07 oz / 32 g |
| Resistance @ 20°C | 1.1 ohms |
| Inductance @ 20°C | 0.1 mH |
| Electrical Time Constant | 0.13 msec |
| Motor Constant | 0.46 in-oz/√watt / 0.32 N-cm/√watt |
| Torque Constant | 0.48 in-oz/amp / 0.34 N-cm/amp |
| Back EMF | 3.5 V/rad/sec |
| Continuous Torque (100% Duty) | 1.3 in-oz / 0.9 N-cm |
| Continuous Power (100% Duty) | 8.0 watts |
| Continuous Current (100% Duty) | 2.7 amps |
| Peak Torque (10% Duty) | 4.0 in-oz / 2.8 N-cm |
| Peak Power (10% Duty) | 62 watts |
| Peak Current (10% Duty) | 8.3 amps |
| # of Poles | 2 |
