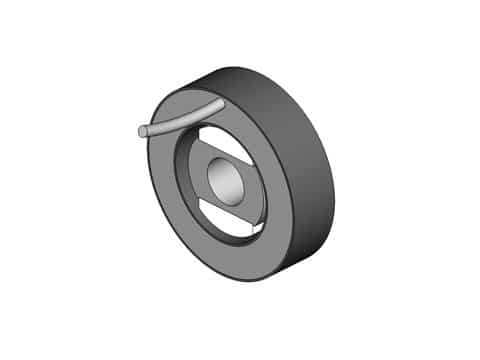

Product Number:
TMR-090-22-006-2
Product Overview
Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.
To determine your motion profile needs, use our rotary motion calculator.
Specifications
| Continuous Torque Range | 90 degrees / 1.57 rad |
|---|---|
| Radial Clearance | 0.05 in / 1.27 mm |
| Housed with Bearings | No |
| Rotor Inertia | 5.6 oz-in² / 0.0001 kg-m² |
| Total Mass | 0.31 oz / 140 g |
| Resistance @ 20°C | 5.3 ohms |
| Inductance @ 20°C | 0.8 mH |
| Electrical Time Constant | 0.15 msec |
| Motor Constant | 2.5 in-oz/√watt / 2.0 N-cm/√watt |
| Torque Constant | 5.8 in-oz/amp / 4.6 N-cm/amp |
| Back EMF | 0.005 V/rad/sec |
| Continuous Torque (100% Duty) | 6.0 in-oz / 4.0 N-cm |
| Continuous Power (100% Duty) | 6.0 watts |
| Continuous Current (100% Duty) | 1.1 amps |
| Peak Torque (10% Duty) | 18 in-oz / 13 N-cm |
| Peak Power (10% Duty) | 52 watts |
| Peak Current (10% Duty) | 3.3 amps |
| # of Poles | 2 |
