Product Number:

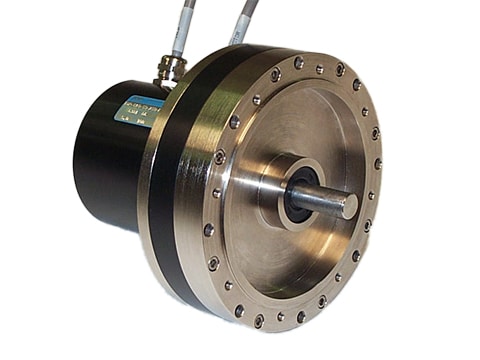

TWR-010-250-8LST
Product Overview
Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.
To determine your motion profile needs, use our rotary motion calculator.
Specifications
| Continuous Torque Range | 10 degrees / 0.17 rad |
|---|---|
| Housed with Bearings | Yes |
| Total Mass | 141 oz / 4000 g |
| Resistance @ 20°C | 1.1 ohms |
| Motor Constant | 38 in-oz/√watt / 26 N-cm/√watt |
| Torque Constant | 39 in-oz/amp / 28 N-cm/amp |
| Continuous Torque (100% Duty) | 200 in-oz / 27.6 N-cm |
| Continuous Power (100% Duty) | 28 watts |
| Continuous Current (100% Duty) | 5.1 amps |
| Peak Torque (10% Duty) | 600 in-oz / 426 N-cm |
| Peak Power (10% Duty) | 255 watts |
| Peak Current (10% Duty) | 15 amps |
| # of Poles | 8 |
