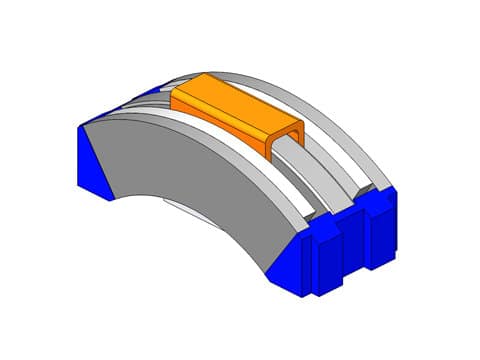

Rotary Voice Coil Actuators (RVCAs)

Overview

Rotary voice coil actuators (RVCAs) are precision limited-angle torque motors designed for applications requiring smooth, high-acceleration angular motion typically less than 90°. Built with an arc-segmented multipole permanent magnet stator and a low-inertia wound copper rotor, these brushless actuators deliver zero cogging and torque ripple for exceptional positioning accuracy.

The system operates on electromagnetic principles: a current-carrying conductor in a magnetic field experiences force proportional to current magnitude and flux density. Since the magnetic field is fixed, rotation direction depends on current polarity and torque output scales linearly with current input.

How Rotary Voice Coils Work

Rotary voice coil actuators function on the same fundamental principle as audio speakers, adapted for rotational motion. The system consists of two primary components that interact electromagnetically without mechanical contact.

When electrical current flows through the moving coil assembly positioned within the stationary magnetic field, it generates a Lorentz force that produces rotational torque. The torque is directly proportional to the input current, providing precise, linear control characteristics ideal for servo applications.

The rotor assembly has exceptionally low inertia, enabling rapid angular acceleration and deceleration. This responsiveness, combined with the absence of commutation or gearing, eliminates backlash and torque ripple entirely. The result is smooth, hysteresis-free motion with instantaneous direction reversals and precise position control when paired with appropriate feedback devices.

Key Components

Rotor (Moving Coil Assembly)

Single coil wound from bondable copper magnet wire, preformed into the desired arc shape and held together with bonding agents. Can be encapsulated with aluminum or plastic brackets to provide mounting interfaces for bearing systems and payload attachment. Maximum angular excursion typically less than 90° per configuration.

Stator (Magnet Assembly)

Stationary assembly featuring multipole permanent magnets bonded to steel plates. Two opposing steel plates are spaced apart using end plates to create the gap through which the rotor moves angularly. No magnetic attractive force exists between stator and rotor.

TWR Series Configurations:

Type L (Low Profile): Compact overall height for space-constrained installations with reduced angular rotation per stator arc segment.

Type S (Standard): Larger overall height with approximately double the angular rotation per stator arc segment compared to Type L.

Custom configurations available for angular excursions up to 360° and continuous torques up to 1000 ounce-inches.

Performance Specifications

Angular Range: Typically <90° (up to 360° custom configurations)

Torque Output: Up to 1000 oz-in continuous torque (custom designs)

Rotation Characteristics:

• Zero cogging throughout travel
• No torque ripple
• Linear torque-to-current relationship
• High angular acceleration capability

Construction: Unhoused, supplied without bearings or shaft

Advantages & Limitations

Control Options

Required Electronics: DC linear servo amplifier provides power to the coil. Programmable motion controller closes the position loop when paired with rotary encoder or feedback device.

Control Modes: Position, velocity, and acceleration control achievable with appropriate servo system integration.

Open Loop Operation: Can be oscillated at set frequencies using function generator for simple applications.

Integration Requirements

Bearing System: Customer-supplied bearings must support the rotor assembly while maintaining mechanical centering within the stator gap. Failure to center properly may cause coil-to-magnet contact and potential electrical shorts.

Feedback Device: Rotary encoder or similar position sensor required for closed-loop servo control.

Mounting: Mounting provisions included on housing and coil assemblies for integration into customer systems.

Clearances: Maintain proper air gap between coil and magnet assemblies per specifications.

Applications

Rotary voice coil actuators excel in precision angular positioning where smooth motion and rapid response are critical:

Aerospace & Defense:

• Powered gimbal systems for camera stabilization
• Satellite tracking platforms
• Laser targeting and beam steering
• Missile fin control

Industrial & Automation:

• Precision pick-and-place systems
• Optical scanning devices
• Valve actuation
• Oscillating mechanisms

Medical & Scientific:

• Surgical robotics
• Laboratory automation
• Beam positioning systems
• Precision measurement equipment

Commercial:

• Drone camera gimbals
• Automotive mirror adjustment
• Professional photography stabilizers
• Optical inspection systems

Why Choose Rotary Voice Coils

RVCAs provide unmatched smoothness and responsiveness for limited-angle rotary applications. The brushless, non-commutated design eliminates maintenance while delivering zero-cogging precision impossible with traditional rotary motors. Low rotor inertia enables aggressive acceleration profiles, and the linear torque-to-current relationship simplifies control system design. The direct-drive approach eliminates backlash entirely, making these actuators ideal for applications where positioning accuracy and rapid directional changes are paramount.

Custom Engineering Capability

Each rotary voice coil actuator is built to order, designed specifically for your application requirements. H2W Technologies works collaboratively to optimize torque output, angular range, physical envelope, and mounting configuration. From standalone coil assemblies that integrate into existing structures to complete multi-axis systems, custom solutions ensure optimal performance within your design constraints.

Ordering Information

Rotary voice coil actuators are custom-designed and manufactured to order. Contact H2W Technologies with your specifications including required torque, angular range, duty cycle, space constraints, and application details. Engineering support available to optimize design for your specific requirements
